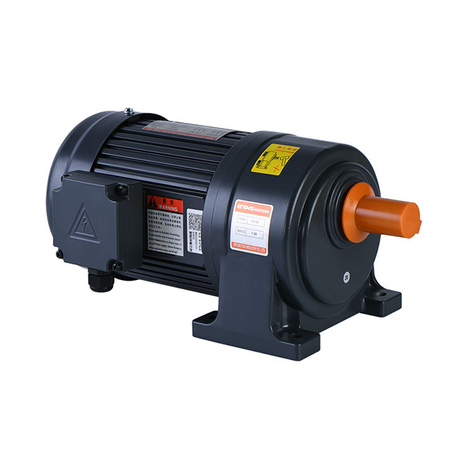

Mounting method:Horizontal foot mounted
Output:100w-3700w(1/8HP~5HP)
Gear reduction ratio:1:3~1:1800
Can be equipped with brake
Three Phase Gear Motor | Single Phase Gear Motor | ||
Gear Motor | Gear | All internal gears are made of high precision special alloy steel and treated by carburzing and quenching | |
Gearbox Material | Aluminum alloy die casting(Shaft diameter 18,22,28) Iron casting(Shaft diameter 32,40,50) | ||
Lubricating Oil | The body is added with advanced lubricating oil before delivery.And no need to lubricate for maintenance | ||
Motor | Power | 220/380V | 110/220V |
Frequency | 50/60Hz | ||
Cooling Method | Fully closed external fan | ||
Starting Mode | Direct-on-line starting | Capacitor starting | |
Housing Material | Advanced aluminum alloy | ||
Insulation Grade | B grade | ||
Protection Grade | Aluminum housing junction box IP54,Iron junction box IP20 | ||
Brake | Action Mode | No exciting brake(Power off brake) | |
Voltage | DC90-110V,with rectifier AC110V/220V | ||
Enviroment | Temperature | -10ºC~40ºC | |
Humidity | Below 90%(noncondensing) | ||
Use Occasion | Indoor,Below 1000 metres | ||
