Product Description
Speed control gear motors combined with a speed controller.
Variable speed adjustable,allowing the gear motor to change speeds without changing the performance of the motor.
According to load requirements,we use speed controller to regulate the power.Therefore,the power consumption of single phase AC geared motor is reduced.
Also noise emission is reduced,energy efficiency is raised up,and the lifespan is prolong.
The digital speed control single phase geared motor can display the motor speed visually.Therefore,it is ideal for application that require for precise control of speed.
Variable speed single phase geared motor is available from 4w-250w.

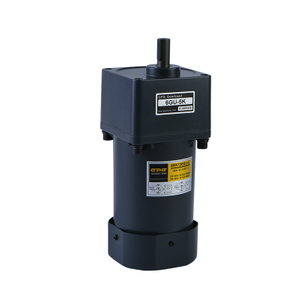

GPG 90W compact design variable speed AC reversible single phase spur geared motor
5RK90RGNC
Motor Specification
| 5 | R | 90 | R | GN | C | ||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | ||||||||
| 1.Frame size | 2.Motor type | 3.Output power | 4.Speed | 5.Shaft type | 6.Voltage | ||||||||
| 2 | 60mm | I | Induction | 4 | 4w | 90 | 90w | R | Variable speed | A | Round shaft | A | Single phase 110v |
| 3 | 70mm | R | Reversible | 6 | 6w | 120 | 120w | GN | Helical gear shaft (4w,6w,15w,25w,40w) | C | Single phase 220v | ||
| 4 | 80mm | 15 | 15w | 140 | 140w | GU | Helical gear shaft (60w,90w,120w,140w, 180w,200w,250w) | S | Three phase 220v | ||||
| 5 | 90mm | 25 | 25w | 180 | 180w | S3 | Three phase 380v | ||||||
| 6 | 104mm | 40 | 40w | 200 | 200w | S4 | Three phase 440v | ||||||
| 60 | 60w | 250 | 250w | SS3 | 3-phase 220v/380v | ||||||||
Gearbox Specification
| 5 | GN | 5 | K | ||||
| 1 | 2 | 3 | 4 | ||||
| 1.Frame size | 2.Shaft type | 3.Gear ratio | 4.Gearbox type | ||||
| 2 | 60mm | GN | Helical gear shaft(60# ,70#,80#,90# gearbox) | 5 | Reduction ratio(5:1) | K | Parallel shaft |
| 3 | 70mm | GU | Helical gear shaft(100# gearbox) | RT | Right angle solid shaft | ||
| 4 | 80mm | GM | Intermediate gearbox | RC | Right angle hollow shaft | ||
| 5 | 90mm | GS | Ear mounted gearbox | ||||
| 6 | 104mm | ||||||
Gearbox torque table(Kg.cm)
Output speed RPM | 500 | 300 | 200 | 150 | 120 | 100 | 75 | 60 | 50 | 30 | 20 | 15 | 10 | 7.5 | 6 | 5 | 3 | ||
Gear reduction ratio | 50Hz | 3 | 5 | 7.5 | 10 | 12.5 | 15 | 20 | 25 | 30 | 50 | 75 | 100 | 150 | 200 | 250 | 300 | 500 | |
60Hz | 3.6 | 6 | 9 | 15 | 18 | 30 | 36 | 60 | 90 | 120 | 180 | 300 | 360 | 600 | |||||
Allowed torque | 90w | kg.cm | 14 | 23 | 35 | 46 | 58 | 69 | 92 | 110 | 133 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
